ME-3388
Wireless Digital Conference System(Record type) |
|
▲ME-3388R
Conference Control Receiver Main Frame |
|
| ▲ME-3388C
Chairman unit |
▲ME-3388D Delegate
unit |
|
| |
| |
Conference
Control Receiver Main Frame (ME-3388R) Function: |
|
| • |
This system is the
wireless conference system, which works at UHF frequency (400MHz~
950MHz); Control signal, audio signal and unit speaker signal
are transmitted by wireless method. [The system has 4 different
groups of frequency and 5 antennas], full digital control; do
not need to configure the cables. Units can be placed flexible
without any wiring. |
| • |
Directing to data communication
algorithm which independent research and development for conference
application, in the signal range, the respond speed will not
affected by delegate unit quantity. Default system units capability
≦1000 sets (including 1 Chairman unit.) |
| • |
There have LCD displayer, power
switch, unit volume adjust button, frequency adjust button and
setting button on the front panel. Grading OSD design, friendly
operate. Front panel also have battery display, low battery
warning, frequency channels and signal display functions. When
main frame's power been shut off, the others unit's also will
been shut off at same time. |
| • |
Channel number: 5 sets.【Chairman
unit *1, Delegate unit *4】After test, each units can support
at least 8 hrs continuous speaking time, stand by time at least
25 hrs. |
| • |
Support 4 speaking mode setting：Chairman
Only mode, Chairman Free mode, Limit (1/2/3/4) mode, FIFO (1/2/3/4)
mode : |
| |
| 1. |
Chairman Only mode：Delegate microphone can
not be turned on again after chairman microphone press
priority button. |
| 2. |
Chairman Free mode：The chairman need quit this mode
first, and then delegate microphone can be turned on again. |
| 3. |
Limit(1/2/3/4) mode：System only allowed (1/2/3/4) pieces
delegate microphones turned on at the same time, if other
delegate microphones want turn on, user should turn off
1, 2, 3 or 4 microphones first. However, the priority
function of chairman unit still works to all the delegate
units under limit mode. |
| 4. |
FIFO(1/2/3/4) mode：System only allowed (1/2/3/4) piece
delegate microphones turned on at the same time, if other
delegate microphone turns on, system will turn off the
first on microphone automatically. However, the priority
function of chairman unit still works to all the delegate
units under FIFO mode. |
|
| • |
Build-in USB/Record & play
module, support MP3 recording and MP3,WMA,WAV playing and USB
sound card; it can connect third party blue-tooth device via
blue tooth for playing the music in the third party blue-tooth
device synchronously. |
| • |
Frequency response: 50Hz~15KHz,
Audio gain:≦20dB,S/N Ratio: >85dB,T.H.D.≦0.8%. |
| • |
Frequency steady: 0.002% quartz
crystal locked, with audio XLR output port *1, audio 6.3Ø output
port *1, and audio 3.5Ø input port *1. Also have [FS] switch
to eliminate the audio feedback. |
| • |
Support RJ-45 port (DATA interface)
*1, also can connect external auto video camera control main
frame (optional) to achieve video auto tracking function. |
| • |
Dimension (W*H*D): 485mm× 100mm（2U,
including chassis foot pad）× 355mm (Including panel width and
antennas approx :450mm),Weight: 7.2kg. |
| • |
Power supply: Using lithium polymer
battery, it also has optional charging case which has smart
charging current management to effectually protect battery and
extend battery life and ensure use safety. |
|
|
|
|

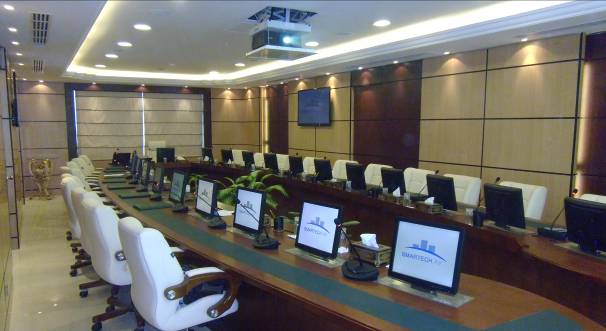

▲ME-3388R
Application-1 |
| |
|
▲ME-3388R
Application-2 |
|
|
Model |
Chairman
unit (Wireless)
ME-3388C |
Delegate
unit (Wireless)
ME-3388D |
|
Function and feature |
| ． |
Wireless and desk type device
which can move freely in the signal cover range(Indoor
accessibility radius≦60m ), don’t need wiring, easy to
install. |
| ． |
LCD display microphone ID, battery level,
microphone state, control channel, etc; Also can adjust
volume, mute button and power switch on each unit. |
| ． |
Support speaking button(ON/OFF) ,with red
light ring on the microphone head and LCD display to recognize
microphone turn on status. |
| ． |
Built-in anti-vibration pad fixed microphone
head, to avoid touch and vibration noise. |
| ． |
The gooseneck design microphone can restrain
3G and 4G mobile phone signal interference. |
| ． |
Microphone body with light ring(replacement
style), the standard is 50cm, others optional 57cm or
70cm. |
| ． |
Build-in HI-FI speaker on the devise buttom(2.5
inch/2W), when microphone working will automatic turn
to mute status to avoid howling sound. |
| ． |
Frequency response: 40HZ～18KHZ, Sensitivity:
-64 dB±4dB with sensitivity adjustment, Noise Ratio: 55dB,
Maximum Voice: 115dB, Sound-receiving distance: 0～30cm. |
| ． |
Dimension(W*H*D): 210x58x129 mm(excluding
microphone rod), Net weight:0.6kg(excluding battery).
|
| ． |
Under the devise base have a lithium polymer
battery ( approx 205g), also has optional DC power plug
to charging. |
| ． |
Working power: DC 12V。 |
| ． |
Consumption Rating：Standby≦360mW, Speaking
status ≦630mW。 |
| ． |
Working tempters: -10℃~ 40℃。 |
|
Priority
speaking button
(Red button) |
YES; Priority pronunciation keys to control permanently terminate
or suspend the termination of the other microphone. (Setting
by wireless digital conference control main frame.)
|
－ |
Chairman
prompt tone |
YES (bells sound): To take participants attention.(Setting
by chairman unit, LCD display will shows icon) |
－ |
3.5mm
stereo port |
1 port: To connecting earphone or for recording
use.
(support volume adjuster to adjust speaker volume on each unit.)
|
|
| |
|
| |
|
▲ UV80C-USB
Series Video Conference Camera
|
• |
Support
USB 2.0,CVBS and S-VIDEO video output. |
| • |
ZOOM:216X(18XOptical,12X
Digital) |
| • |
Easy operate controller
to processing general setting and P/T/Z control
track. |
| |
|
| |
|
▲ ME-3388CG Charging
case
|
• |
Power:110V~240V
50Hz/60Hz , 200W. |
| • |
Charge units:16, Unit
max charging current ,charging time: 8~10 hrs. |
| • |
Charging status: Red
light sparking-charging; Green light-charging finished. |
| • |
Dimension: 620mm×370mm×260mm
(Pulling rod could be extend to 380mm). |
| • |
Weight:9.6kg (excluding
battery.) |
| |
|
| |
|
▲ HS-VD70 Auto Camera
Control Main Frame
|
• |
Through
data interface can connect wireless digital conference
control main frame via RJ-45 cable. |
| • |
Support 8 video conference
camera, and support up to 256 camera position track
control points. |
| • |
Support various camera
protocol ( PELCO_D 9600 ).
(For example :SONY,PELCO_D,SAMSUNG…etc.) |
| |
|
| |
|
▲ MT-102 FLASH RECORDER
/ PLYAER
|
| • |
MT-102
is able to record automatically when the audio value
between <-10~-40dB. While the audio input signal
stopping for 1-30 sec (stopping time also able to
be set) , it can setup the function of pause and
continuing recording. |
| • |
Support standard “SDHC
memory card” and “USB 3.0 interface”; Support FAT16,
FAT32 files format, maximum memory up to 32GB. Support
recording and Music display mode: MP3、WMA、WAV、AAC、OGG、FLAC
format files acceptable. |
|
|
| |
|
|
| |
|
 |
